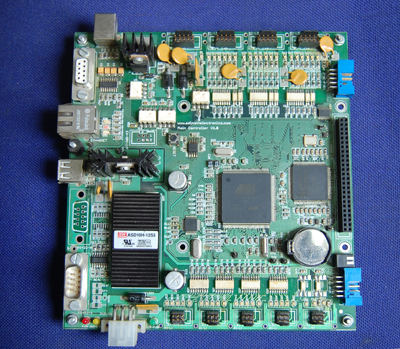

ARM9 processor based Industrial Single Board Computer
(SBC1926)
This is a compact
Industrial computer with a powerful processor, lot of memory and several
interfaces like USB host and device, Ethernet LAN interface and so on. This
Industrial computer integrates a powerful processor, an FPGA, lot of memory and
optically isolated I/O on a single board – hence it is perfect solution for Industrial Control and
Automation.
The board also
provides lot of non-volatile storage options: you may connect a pen-drive to
USB host interface. The USB host interface can be also used for connecting keyboard and mouse.
The board runs Linux,
so you may develop Linux based applications to access the on-board I/O as well
as other high end peripherals like USB and Ethernet.
We
also offer training course on Embedded
Linux on ARM. This board is used for some illustrations during this
training course. The course will enable you to write Linux based applications
that run on this board or other similar hardware.
If
you are looking for Single Board Computer with PC/104
interface, then SBC9302 is the right solution for
you. SBC9302 and SBC1926 boards have been designed to meet 2 different
requirements:
·
SBC9302: provides more versatile interfaces, but only a
few I/O pins, that too TTL (3.3V level) without optical isolation. But, thanks
to PC/104 interface, provides more flexibility to expand. It is very easy and
convenient to add PC/104 modules for I/O, for display interface (LCD or VGA
monitor) and so on.
·
SBC1926 (i.e. this board): provides optically isolated
I/O and 400K gates FPGA on board, but does not have PC/104 interface. Thus
expansion possibilities are limited.
We
also make general purpose Evaluation Boards based on
ARM micro-controllers.
Here are the
specifications of SBC1926 board:
Hardware:
·
ARM9
processor (AT91SAM9260) @ upto 198 MHz.
·
Memory:
1.
SDRAM:
Standard 32 MB 100 MHz SDRAM (optionally, upto 64 MB).
2.
NAND
Flash: 256 MB.
3.
Serial
flash: 2 MB SPI Data Flash.
·
UARTs:
1 RS232 (for debug and downloading), 2 RS422.
·
RJ45
10/100 Mbps Ethernet LAN interface.
·
Unique MAC ID is assigned to each board.
·
1
full speed USB Host interface.
·
1
full speed USB device interface.
·
I2C
interface (with optional on-board 64KB I2C EEPROM).
·
SPI
interface signals brought out on a separate 6 pin connector.
·
RTC
with battery backup.
·
FPGA:
on-board Spartan-III FPGA with 400K gates; memory mapped interfaced to main
processor with 16 address and 16 data lines.
·
Separate
JTAG connector for FPGA configuration.
·
I/O:
Total 18 inputs and 22 outputs.
1.
16
optically isolated digital inputs; all inputs can generate interrupt. Inputs
can be configured as PNP or NPN in groups; can sink or source upto 15 mA. All
inputs are protected by resettable fuse.
2.
2
high speed (upto 200 KHz) optically isolated digital inputs; can be connected
to FPGA or to host processor. All inputs are protected by resettable fuse.
3.
18
optically isolated digital outputs. Outputs can source upto 1A at 24VDC.
4.
4
high speed (upto 200 KHz) optically isolated outputs; 2 of these are driven by
host processor and can generate PWM output, remaining 2 are driven by FPGA.
Outputs can source upto 500 mA at 24VDC.
5.
Possibility
of I/O expansion through 50 pin connector; 43 FPGA I/O pins brought out here.
·
Power:
accepts 18-36VDC supply. All other needed voltages generated with on-board
isolated DC-DC converter.
·
Supply
current: draws < 200 mA at 24VDC.
·
Dimensions:
170 mm X 160 mm; maximum component height is 30 mm.
Software:
·
Runs
embedded Linux.
·
Users
may write stand-alone or Linux based applications to run on this board.
·
CD
contains sample programs.
·
Enough
memory to run other OSs like WinCE.
·
BSP
for Linux included.
Deliverables:
·
SBC1926
board with specs as above.
·
CD
with Linux based sample programs.
·
User’s
manual.
Prices:
|
|
Price |
||
|
INR |
USD |
EUR |
|
|
SBC1926
with 32 MB RAM |
22,500/- |
410 |
|
|
SBC1926
with 64 MB RAM |
24,500/- |
450 |
|
We
also offer training course on Embedded
Linux on ARM. This board is used for some illustrations during this
training course. The course will enable you to write Linux based applications
that run on this board or other similar hardware. Currently we have a special offer for those who would like to
buy SBC1926 as well as get the training Embedded
Linux on ARM.
Our sales contact
in Europe:
Dr. Ing. Madhav Khadkikar
Vordere
Kirchstrasse 4
72184 Eutingen
Germany
Fon:
+49 7459 / 1271
Fax:
+49 7459 / 2471
Email: madhav.khadkikar@spjsystems.com
Note: We reserve the right to
change specifications of any product without notice.
